Swing, Climb, Splash—Repeat.

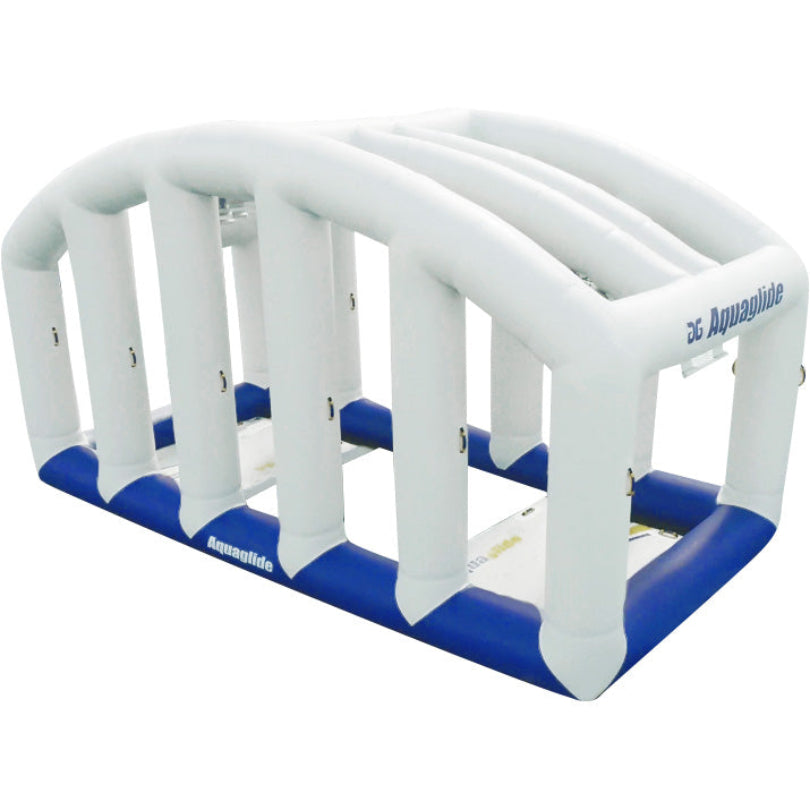

The Monkey Dome takes the classic playground challenge and gives it a refreshing twist—falling is part of the fun. Guests test their grip and balance as they swing or climb across the central bars, with the water below offering a soft (and often hilarious) landing.
Flanking the center are two Neptune-style side paths, where users can traverse from beam to beam for alternate routes. With three unique ways to cross, the Monkey Dome is a versatile addition that works as a standalone feature or connects seamlessly into any Aquaglide park via the D-Ring Interloc system.
[CA] PROP 65 WARNING: This product can expose you to DEHP, a chemical known to the State of California to cause Cancer, birth defects, or other reproductive harm. For more info go to www.P65Warnings.ca.gov.
Features
- Best For: Climbing, swinging, and traversing.
- Capacity: 6 Adults / 6 Children
- Warranty: 3-year limited against any manufacturing defects.
- Dimensions: L 20′ x W 10′ x H 10.9′ (L 6.1 m x W 3.04 m x H 3.33 m)
- Box Dimensions: L 3.93′ x W 3.28′ x H 2.79′ (L 1.2 m x W 1 m x H .85 m)
- Min Water Depth: 6.0′ (1,84m)
- Includes: Monkey Dome, Vario-Lock™ straps (10), and repair kit.
- Not Included: Boarding platform, anchor weights, mooring lines, bridles, and inflation pump.
Key Tech Features
- Tubular – Welded structural tube construction with 3-layer seams.
- Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance.
- Interlock 5 – 2 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
- Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
Key User Activities
- Cave – Interior space is almost cathedral-like providing a focused atmosphere for the task at hand.
- Monkey – Features overhead monkey bar handles to traverse the sizeable gap. A serious challenge!
- Balance – Offers 2 alternate paths; each a Neptune-style balance element to keep users on their toes.
- Obstacle – Presents a serious obstacle challenge which adds to the fun.
Technical Specifications
- Max Weight – 1,600 lb. (726 kg) max weight.
- Material – 0.90 mm / 31 oz Cx3
- Minimum Distance from Shore – 15’ (4.5 m)
- Minimum Required Total Anchor Weight – 2,200 lb. (1,000 kg)
- Anchor Rings – 4, or 2 with 2-way bridles.
- Accessory Attachment D-rings – 5 each on 2 sides, 4 each on two sides.
Product Notes
- Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
- If utilizing as a standalone piece, this item requires a boarding platform (not included) such as Swimstep XL, Swimstep 5×5, Speedway 10, Speedway 20, or Splashmat.
- The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
