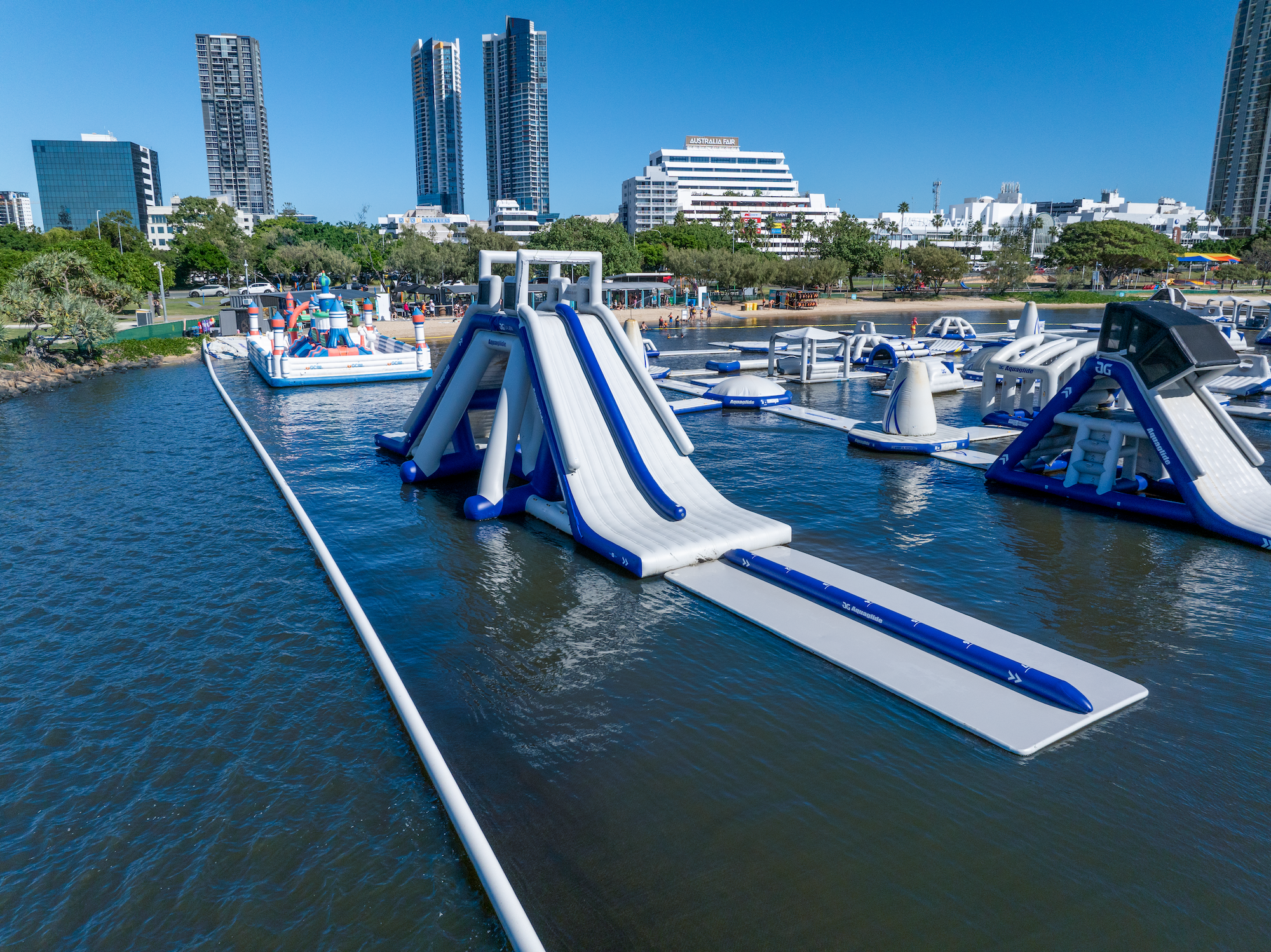

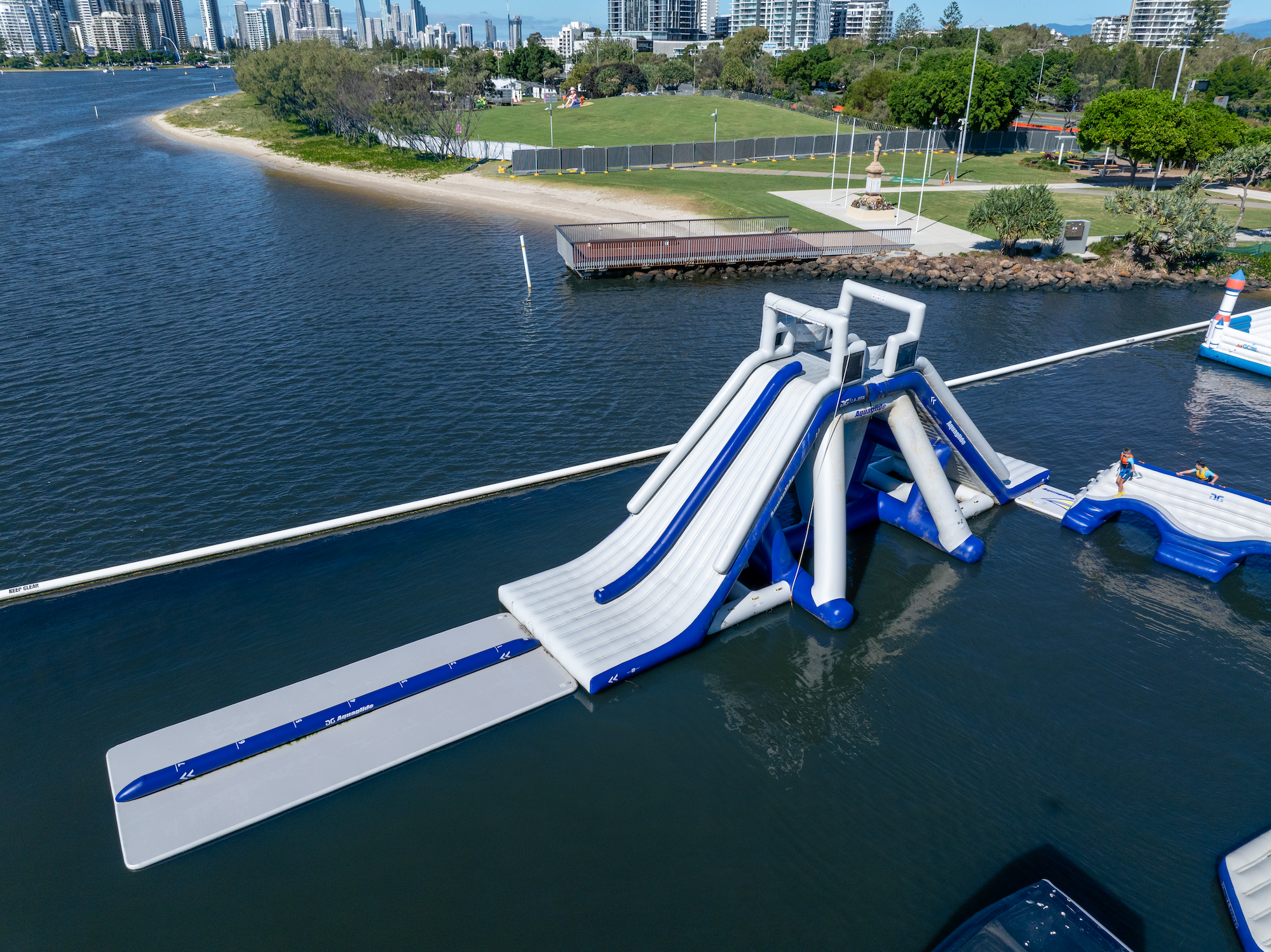

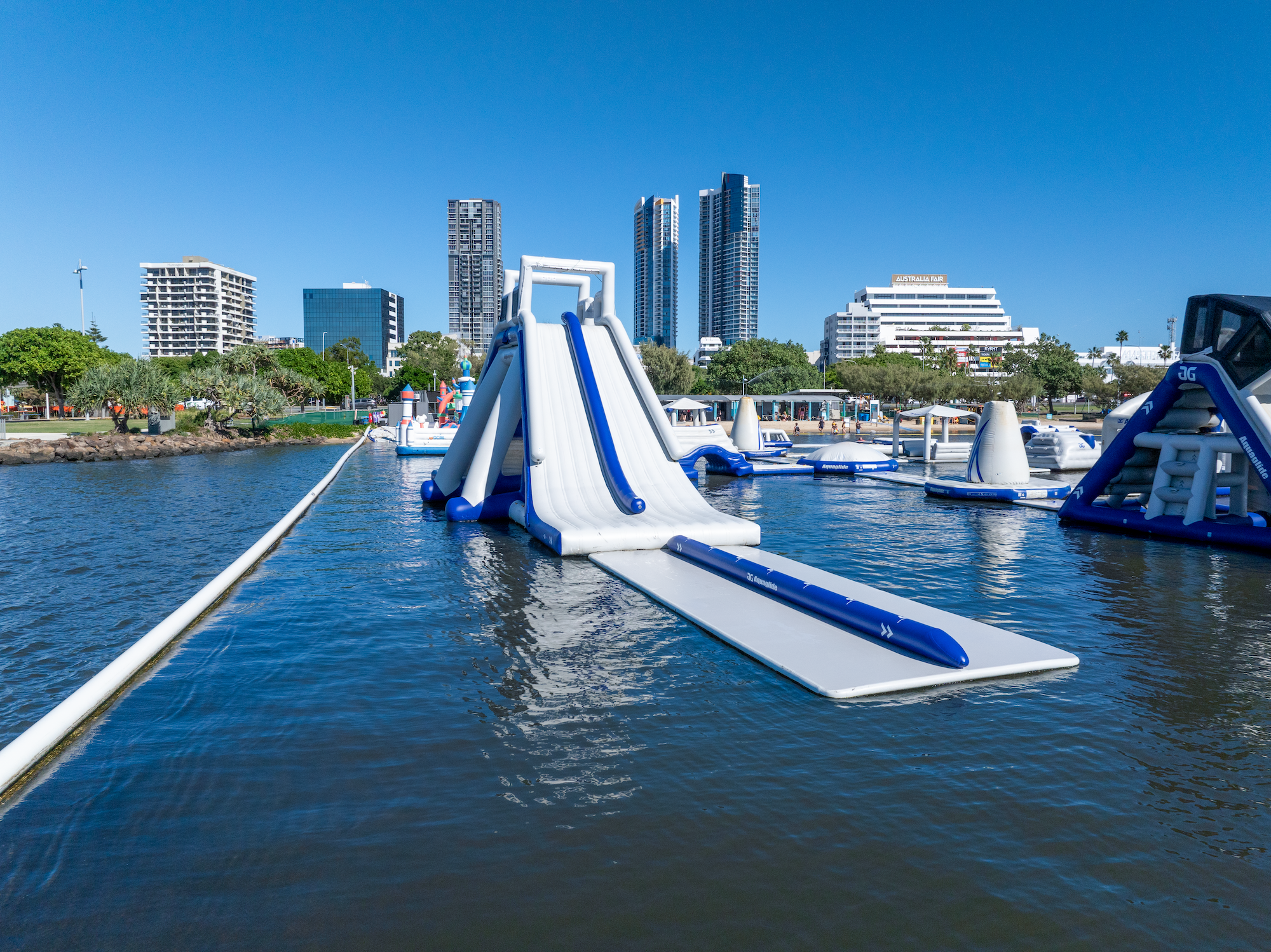

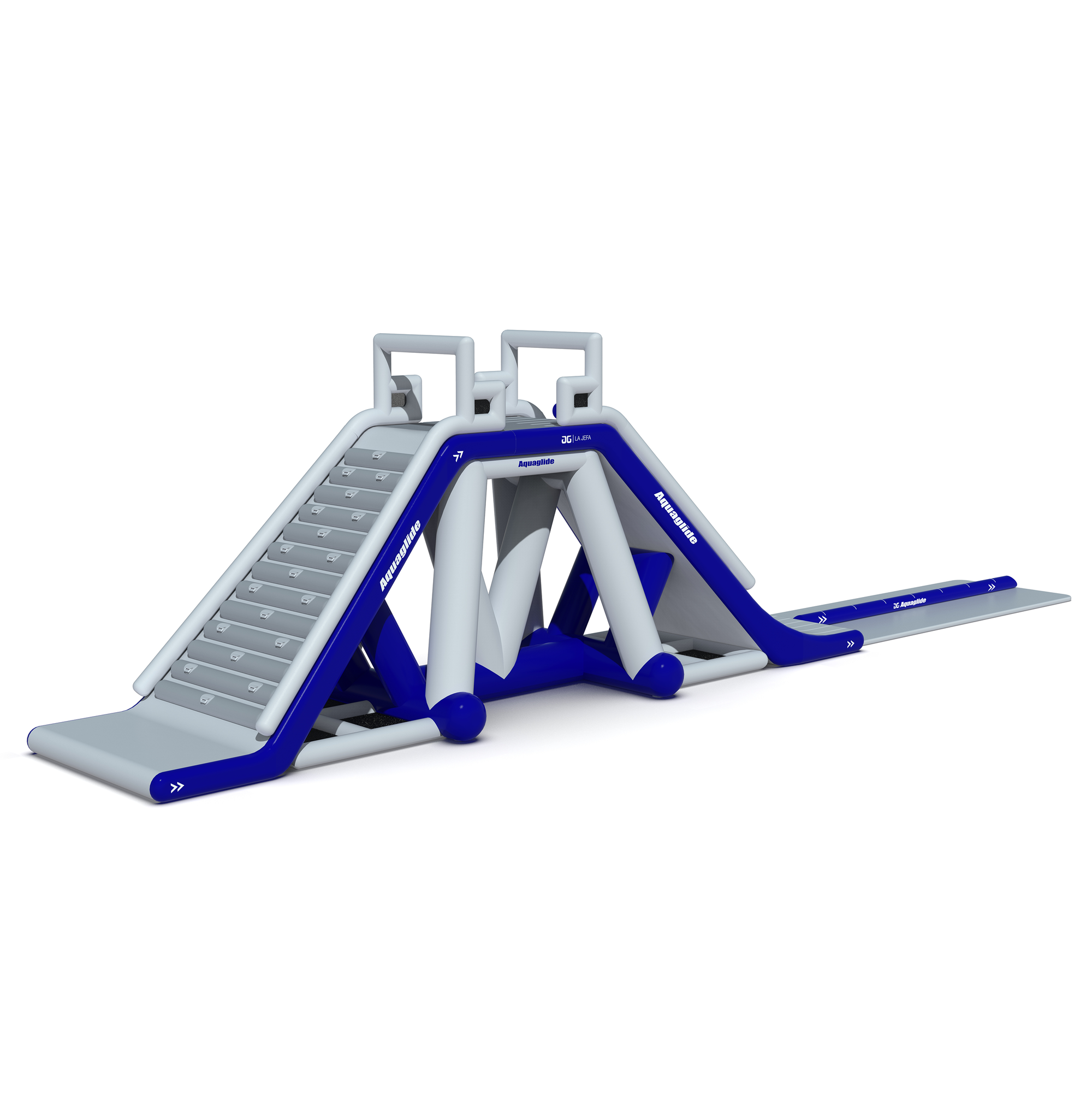

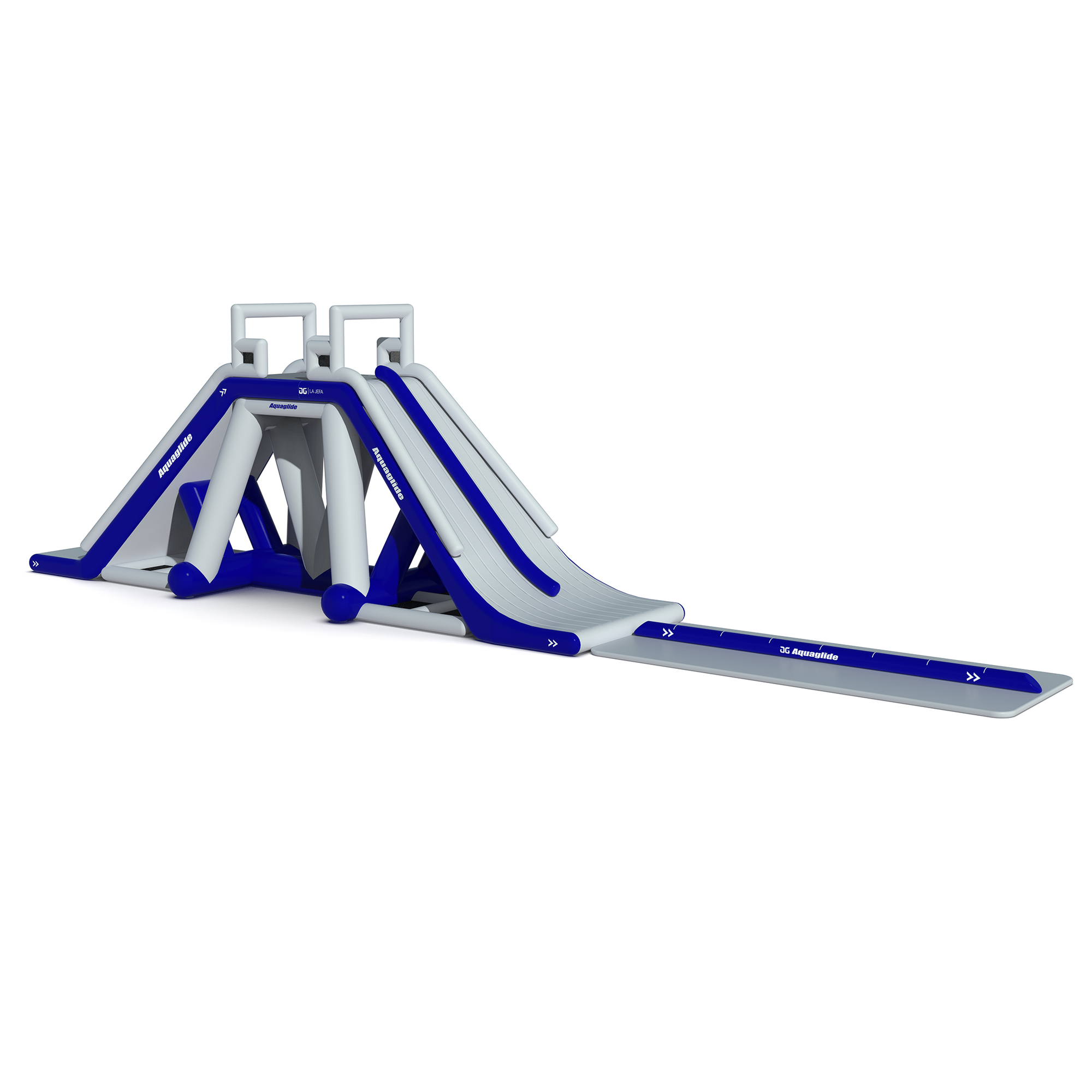

La Jefa TR—the ultimate Aquapark centerpiece!
This towering structure features a massive climbing wall, two high jump stations, and an extended slide for maximum thrills.
Shaded splash caves and multiple entry points make it perfect for both standalone excitement and seamless park integration.
Elevate your Aquapark experience with La Jefa TR! Whether used as a standalone icon or integrated into a larger park, La Jefa delivers unmatched presence and play value.
[CA] PROP 65 WARNING: This product can expose you to DEHP, a chemical known to the State of California to cause Cancer, birth defects, or other reproductive harm. For more info go to www.P65Warnings.ca.gov.
Features
- Best For: Climbing, sliding, jumping to the max!
- Capacity: 12 Adults / 12 Children
- Warranty: 3-year limited against any manufacturing defects.
- Dimensions: 50’-5” L (1,536 cm) x 20’ W (610 cm) x 19’-10” H (603 cm).
- Min Water Depth: 10’ 7” (3.27 m)
- Not Included: Trickler Kit, Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.
Key Tech Features
- Double I-Beam – Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
- Tubular – Integrates welded structural tube construction with 3-layer seams.
- Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
- Tritex Cx3– Uniquely textured version of our Duratex material adding grip and cooling attributes.
- Interlock 5 – 3 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
- Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
- PRV – Pressure relief valves to help protect against catastrophic over-inflation.
Key User Activities
- Trickler Ready – Built-in pockets and attachments for optional slide-face irrigation system.
- Climb – Integrated novice climbing wall.
- Jump – 2 dedicated jump stations at over 4.73m (15.5 feet) for heart-stopping excitement.
- Slide – Features a huge slide with thrilling kicker feature for maximum enjoyment.
- Cave – Adds interest with two shaded cave areas.
- Multi-level – Diverse multi-level play accommodates more users.
- Splash – Mesh floor provides cooling and excitement.
- Meridian Mesh – Uniquely configured to reduce cleaning requirements.
- Shade – Adds a covered shade feature where users can rest or gather out of the sun.
Technical Specifications
- Max Weight: 2,400 lb. (1,089 kg) max weight.
- Capacity: 12 Adults / 12 Children
- Weight: 1415.4 lb. (642 kg) *Shipped in 3 boxes
- Material: 0.90 mm / 31 oz Cx3 Duratex and Tritex
- Dimensions: 50’-5” L (1,536 cm) x 20’ W (610 cm) x 19’-10” H (603 cm).
- Minimum Required Water Depth: 10’ 7” (3.27 m)
- Minimum Distance from Shore: 15’ (4.5 m)
- Minimum Required Total Anchor Weight: 8000lbs (3629kg)
- Anchor Rings: 8
- Accessory Attachment D-rings: 5 each on 3 sides.
Product Notes
- Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
- The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
