Bounce. Climb. Lounge. Repeat.

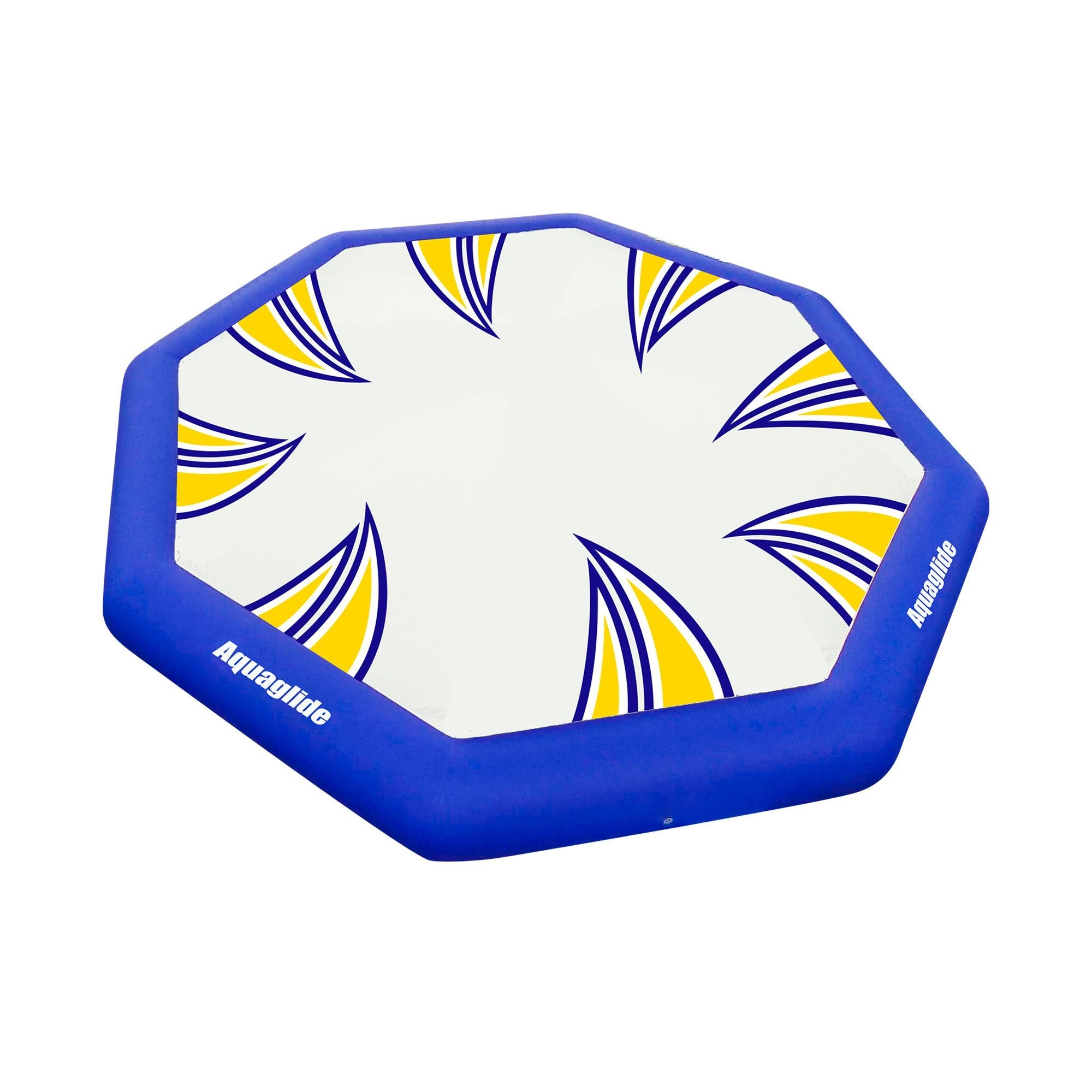

With its bold, inflatable dome shape, Kaos is anything but ordinary. This dynamic, free-form play feature invites users to climb, bounce, slide, splash, or simply lounge, making it a versatile alternative to a traditional trampoline.

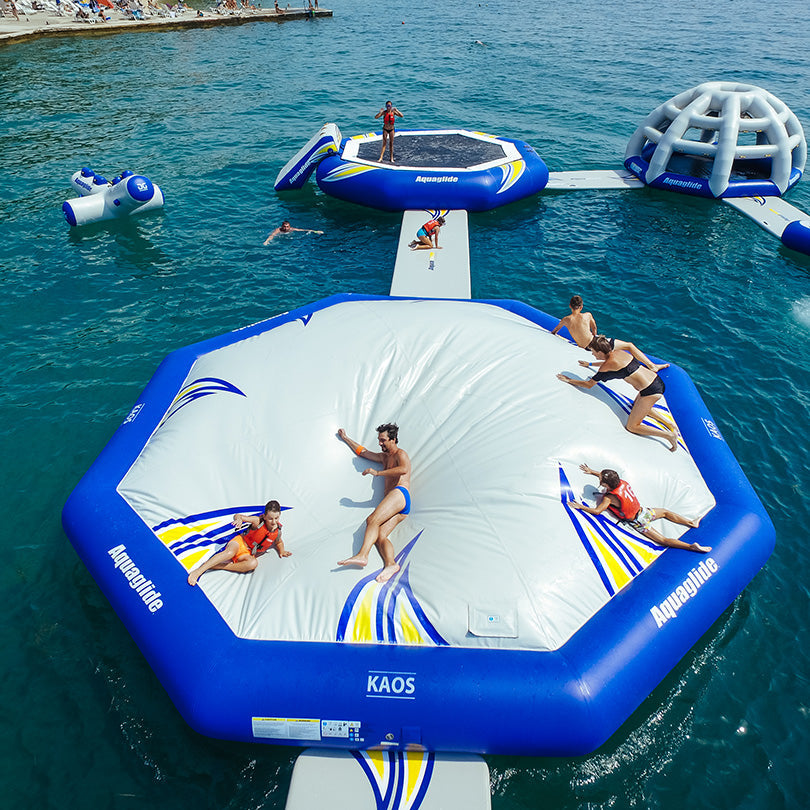

Designed for total flexibility, Kaos can be used as a standalone attraction or as a central hub—connecting to up to eight other Aquaglide features using the D-Ring Interloc system. It’s a magnet for play and relaxation alike, and the kind of feature guests return to again and again.
Features
- Best For: Bouncing, climbing, splashing, and lounging.
- Capacity: 5 Adults / 5 Children
- Warranty: 3-year limited against any manufacturing defects.
- Dimensions: L 25′ x W 25′ x H 4′ (L 7,6m x W 7,6m x H 1,2m)
- Box Dimensions: L 45″ x W 29.5″ x H 19.7″ (L 115cm x W 75cm x H 50cm)
- Min Water Depth: 7.4′ (2,26m)
- Includes: Kaos structure and repair kit.
- Not Included: Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.
Key Tech Features
- Tubular – Welded structural tube construction with 3-layer seams.
- Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance.
- Interlock 5 – 8 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
- Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
Key User Activities
- Bounce – Offers a bounce element to keep things lively.
- Balance – Offers a challenging balance element to keep users on their toes.
- Jump – Numerous jump opportunities add to the fun.
- Hub – Serves a central hub connection for numerous pathways.
Technical Specifications
- Max Weight – 1,000 lb. (454 kg) max weight.
- Material – 0.90 mm / 31 oz Cx3
- Minimum Distance from Shore – 15’ (4.5 m)
- Minimum Required Total Anchor Weight – 4,400 lb. (2,000 kg)
- Anchor Rings – 4
- Accessory Attachment D-rings – 5 each on all 8 sides.
Product Notes
- Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
- If utilizing as a standalone piece, this item requires a boarding platform (not included) such as Swimstep XL, Swimstep 5×5, Speedway 10, Speedway 20, or Splashmat.
- The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
