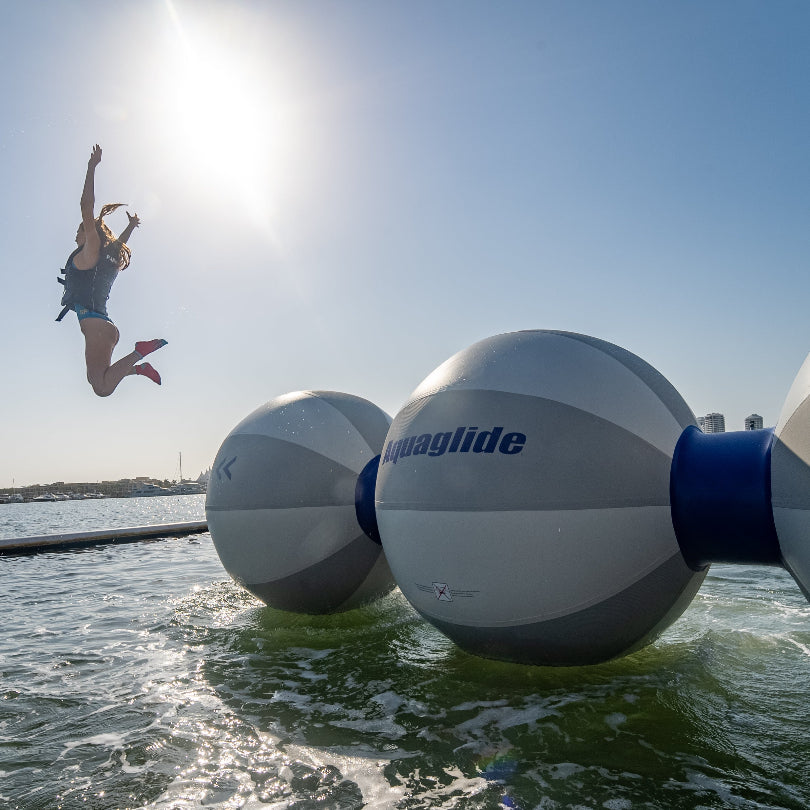

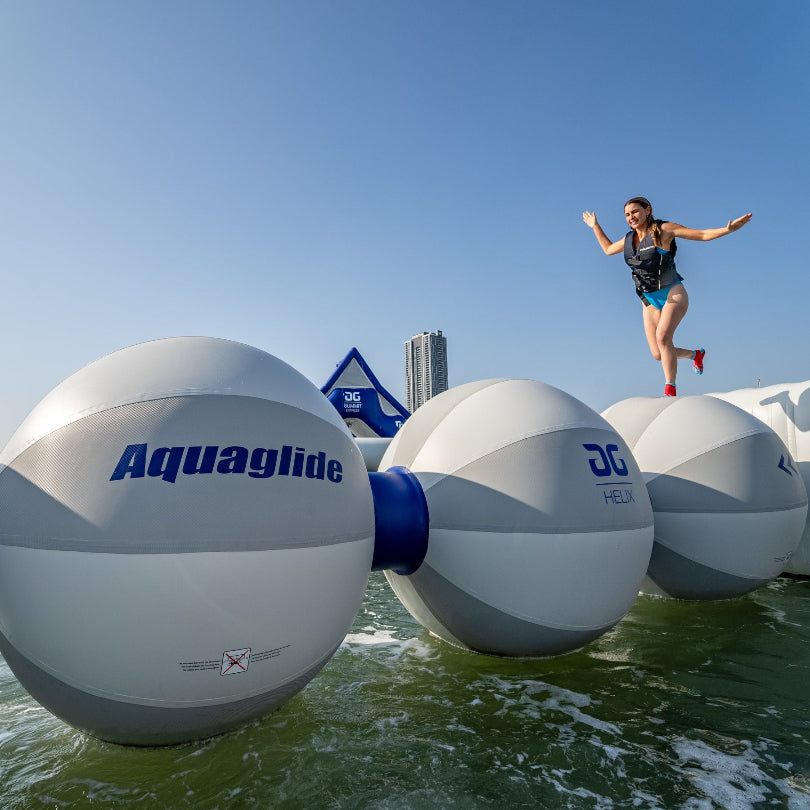

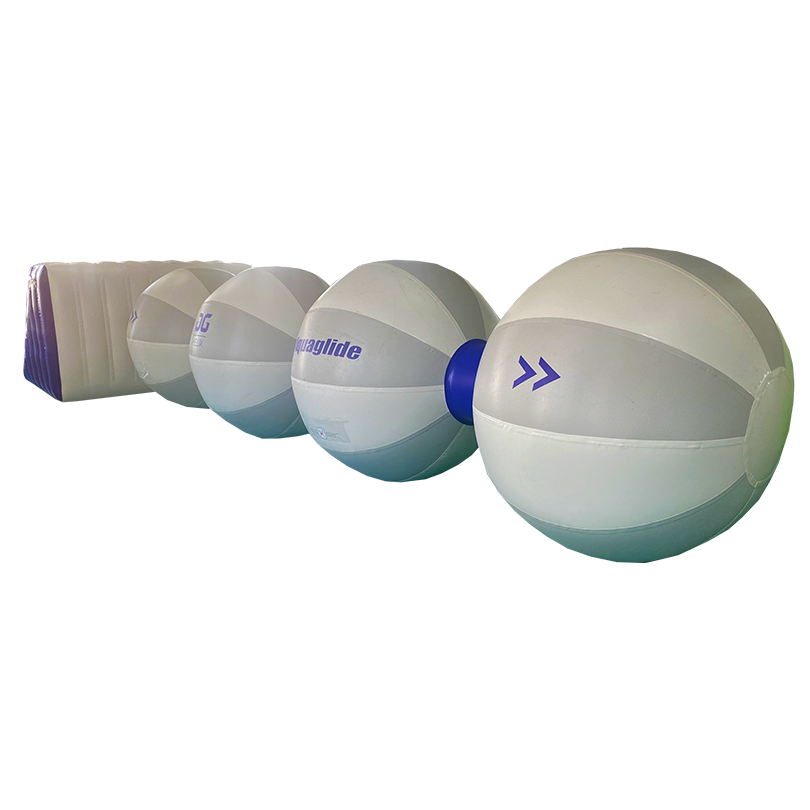

The Helix offers a fun and dynamic way to test balance and coordination on the water. Featuring a series of connected spheres, this piece creates a playful challenge as participants make their way across its rolling surface. Its unique shape adds variety to any aquapark route, encouraging both kids and adults to try again and again. The Helix is a versatile addition that blends movement, excitement, and approachability in one eye-catching feature.

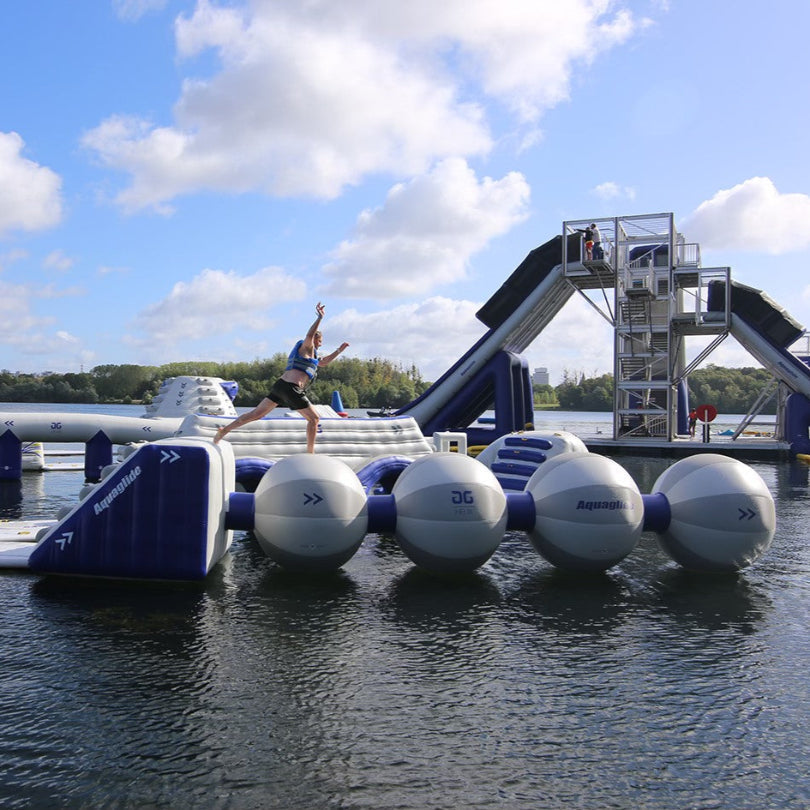

Connects to any aquapark using Aquaglide’s Interlock system. Ideally positioned at the end of a track run, Helix also makes an excellent stand-alone item.
Features
- Best For: Jumping and leaping as a high excitement signature item!
- Capacity: 4 Adults / 4 Children
- Warranty: 3-year limited against any manufacturing defects.
- Dimensions: 30.0ft L (917 cm) x 8.2 ft W (250 cm) x 5.0ft H (152 cm)
- Min Water Depth: 5.4 ft (1.66 m)
- Not Included: Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.
Key Tech Features
- Double I-Beam – Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
- Tubular – Integrates welded structural tube construction with 3-layer seams.
- Duratex Cx3 – Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
- Tritex Cx3– Uniquely textured version of our Duratex material adding grip and cooling attributes.
- Interlock 5 – 3 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
- Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.
- PRV – Pressure relief valves to help protect against catastrophic over-inflation.
- TRiB CG – Integrated solar powered air pressure gauges in main chambers.
Key User Activities
- Obstacle– Presents an obstacle challenge which adds to the fun.
- Jump – Jump station adds to the excitement.
- Balance– Offers a challenging balance element to keep users on their toes.
Technical Specifications
- Max Weight: 800 lb. (363 kg) max weight.
- Capacity: 4 Adults / 4 Children
- Weight: 202.8 lb. (92 kg)
- Material:0.90 mm / 31 oz Cx3 Duratex and Tritex
- Dimensions: 30.0ft L (917 cm) x 8.2 ft W (250 cm) x 5.0ft H (152 cm).
- Minimum Required Water Depth: 5.4 ft (1.66 m)
- Minimum Distance from Shore: 10’ (3.0 m)
- Minimum Required Total Anchor Weight: 2000 lbs (1000 kg)
- Anchor Rings: 4
- Accessory Attachment D-rings: 5 rings on one side
Product Notes
- Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
- The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
